Model No: Inconel 617
Inconel 617
INCONEL 617 alloy (UNS N06617/W.Nr. 2.4663a) is a solid-solution, strengthened, nickel-chromium-cobaltmolybdenum alloy with an exceptional combination of high-temperature strength and oxidation resistance.
Delivery :
FOB
minimum order :
100 kilograms
Supply Ability :
5000Tonkilograms / Month
Stock Time :
7-10Day
Country of Origin :
CHINA
Quantity :

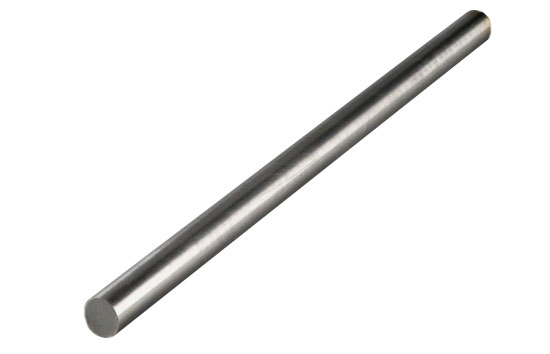

Inconel 617 Description
INCONEL 617 alloy (UNS N06617/W.Nr. 2.4663a) is a solid-solution, strengthened, nickel-chromium-cobaltmolybdenum alloy with an exceptional combination of high-temperature strength and oxidation resistance.
The alloy also has excellent resistance to a wide range of corrosive environments, and it is readily formed and welded by conventional techniques.
The combination of high strength and oxidation resistance at temperatures over 1800°F (980°C) makes INCONEL 617 alloy an attractive material for such components as ducting, combustion cans, and transition liners in both aircraft and land-based gas turbines. Because of its resistance to high-temperature corrosion, the alloy is used for catalyst-grid supports in the production of nitric acid, for heat-treating baskets, and for reduction boats in the refining of molybdenum. INCONEL 617 alloy also offers attractive properties for components of power-generating plants, both fossilfueled and nuclear.
Ease of joining through most conventional welding techniques
Many industries around the globe rely on Inconel 617 alloy or Nickel Alloy 617 for a number of different processes. The alloy is found in ducting, combustion cans, chemical production, heat-treating baskets, power-generating plants (both fossil fuel and nuclear), and gas turbines both on land and in the air.
gas turbines for combustion cans
ducting
transition liners
petrochemical processing
heat-treating equipment
nitric acid production
components of power-generating plants
Oil Power Plants
Nuclear Power Plants
Inconel 617 Alloy Chemical Composition
| Elements | Content (%) |
| Nickel, Ni | 48.85-62 |
| Chromium, Cr | 20-24.0 |
| Cobalt, Co | 10-15 |
| Molybdenum, Mo | 8-10 |
| Manganese, Mn | ≤ 1 |
| Silicon, Si | ≤ 1 |
| Carbon, C | ≤ 0.15 |
Inconel 617 Alloy Physical Properties
| Properties | Metric | Imperial |
| Density | 8.3g/cm³ | 0.302 lb/in³ |
| Melting point | 1363°C | 2485°F |
Inconel 617 Alloy Mechanical Properties
| Properties | Metric | Imperial |
| Tensile strength | ≥ 485 MPa | ≥ 70300 psi |
| Yield strength | ≥ 275 MPa | ≥ 39900 psi |
| Elongation at break | ≥ 25% | ≥ 25% |
| Hardness, Brinell | 170 | 170 |
Other Designations
Other Inconel 617 alloy designations are UNS N06617 and DIN 2.4663a. Other common trade names are Nicrofer 617 and Alloy 617.
Fabrication and Heat Treatment
Machinability
Inconel 617 is machined using conventional machining methods usually used for iron-based alloys. Machining operations are performed using commercial coolants. High-speed operations such as grinding, milling, or turning are performed using water-base coolants.
Forming
Inconel 617 alloy can be formed using all conventional techniques.
Welding
Inconel 617 alloy is welded using gas-tungsten arc welding, shielded metal-arc welding, gas metal-arc welding, and submerged-arc welding methods.
Heat Treatment
Inconel 617 alloy is heat treated by annealing at 1177°C (2150°F) followed by quenching in water or cooling in air for thinner sections.
Forging
Inconel 617 alloy is forged at 1010 to 1205°C (1850 to 2200°F).
Hot Working
Inconel 617 alloy is hot worked at 927 to 1205°C (1700 to 2200°F).
Cold Working
Inconel 617 can be cold worked using standard tooling.
Annealing
Inconel 617 is annealed at 1177°C (2150°F) followed by cooling.
Hardening
Inconel 617 can be hardened by cold working.
Applications
- Inconel 617 Applications include
- Aerospace parts
- Petrochemical processing parts
- Furnaces
- Gas turbines
- Combustion cans
- Ducts
- Components in power stations
- Parts for welding tools.
