Lork Group Stellite 6B machined bushings exported to Germany
Order Overview
Professional Material Selection for Demanding Operating Conditions
Stellite 6B is a premier grade of cobalt-based superalloy, renowned for its exceptional wear resistance, corrosion resistance, and high-temperature stability. Its key advantages include:
- Exceptional wear resistance: It far outperforms stainless steel and many tool steels—often lasting five to eight times longer than ordinary carbon steel—in conditions involving sliding wear, abrasive wear, and erosive wear.
- Superior corrosion resistance: It withstands corrosion from a wide range of acids, alkalis, and salt solutions, performing particularly well in high-concentration and high-temperature environments.
- Excellent high-temperature performance: It retains high hardness and strength at temperatures of 540°C and above, making it ideal for high-temperature valve components.
- Resistance to cavitation and galling: Its tough cobalt matrix absorbs the impact of collapsing bubbles, while carbides resist cutting by micro-jets; the alloy's low coefficient of friction and self-lubricating properties (due to a cobalt oxide film) effectively prevent metal-on-metal galling.
Precision Machining and Rigorous Quality Inspection
Our quality inspection process is safeguarded by a dual-stage system comprising both initial and secondary inspections. The preliminary inspection for every shipment encompasses five fundamental checks: specifications, quantity, tolerances, surface quality, and packaging. For example:

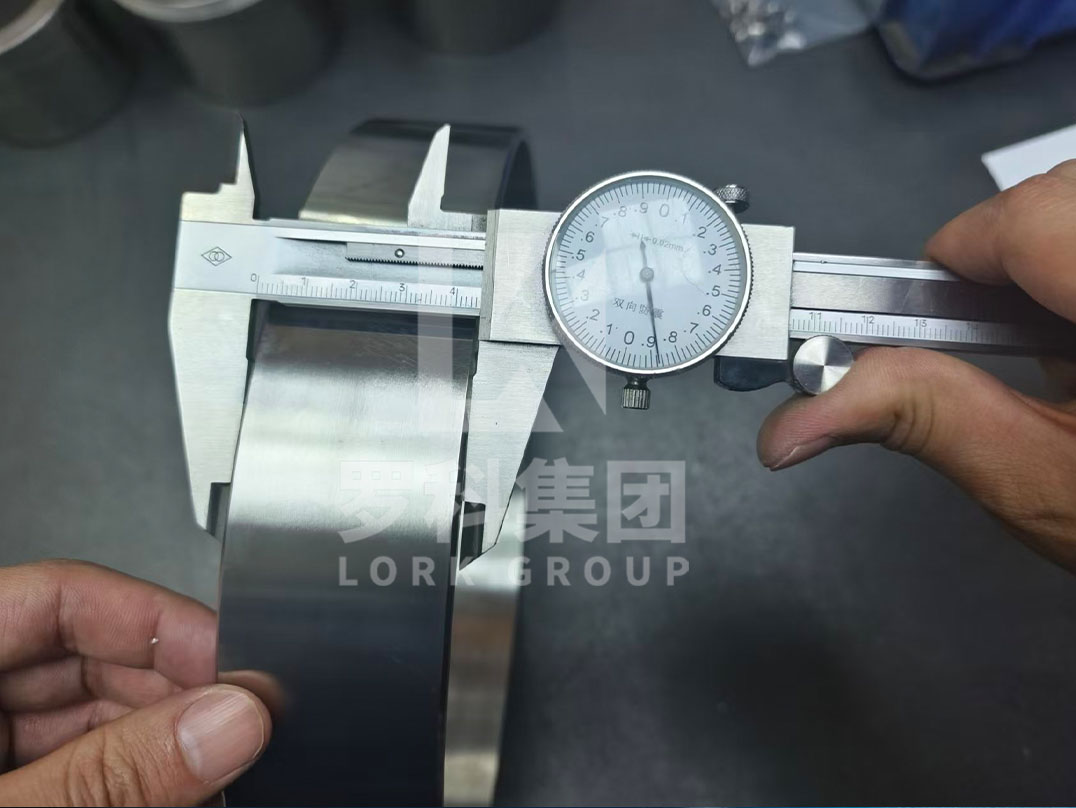

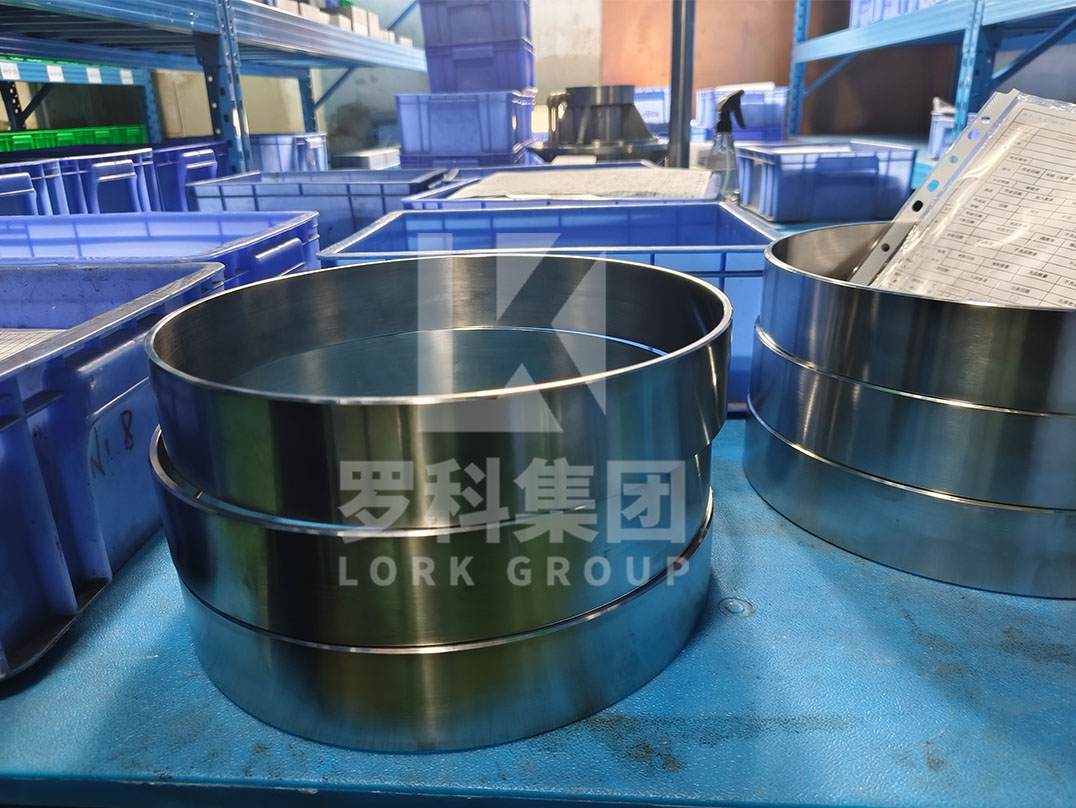

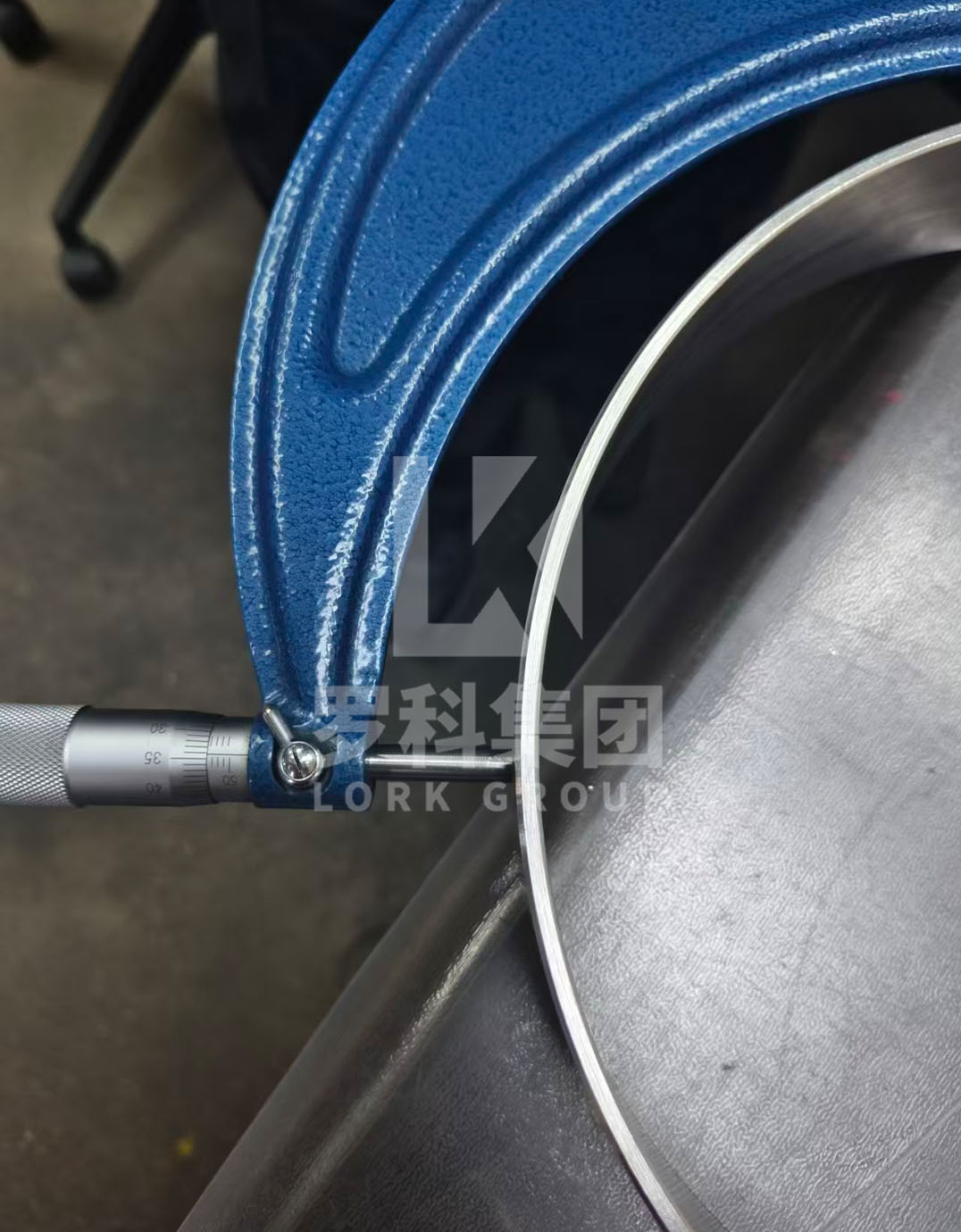

Dimensional Tolerances: The exported bushings measure 9 cm in width and 36 cm in diameter and are classified as high-precision machined components. Machining Stellite 6B alloy presents significant technical challenges; due to the material's high hardness and wear resistance, the process requires ultra-hard cutting tools, controlled cutting speeds, and adequate cooling, resulting in higher production costs.
Surface Quality: During the machining of Stellite 6B keyway bushings, issues such as surface cracks, roughness, altered layers, and internal defects are prone to occur. Inspection protocols focus on conducting comprehensive Magnetic Particle Testing (MT) and Ultrasonic Testing (UT) on the bushings.

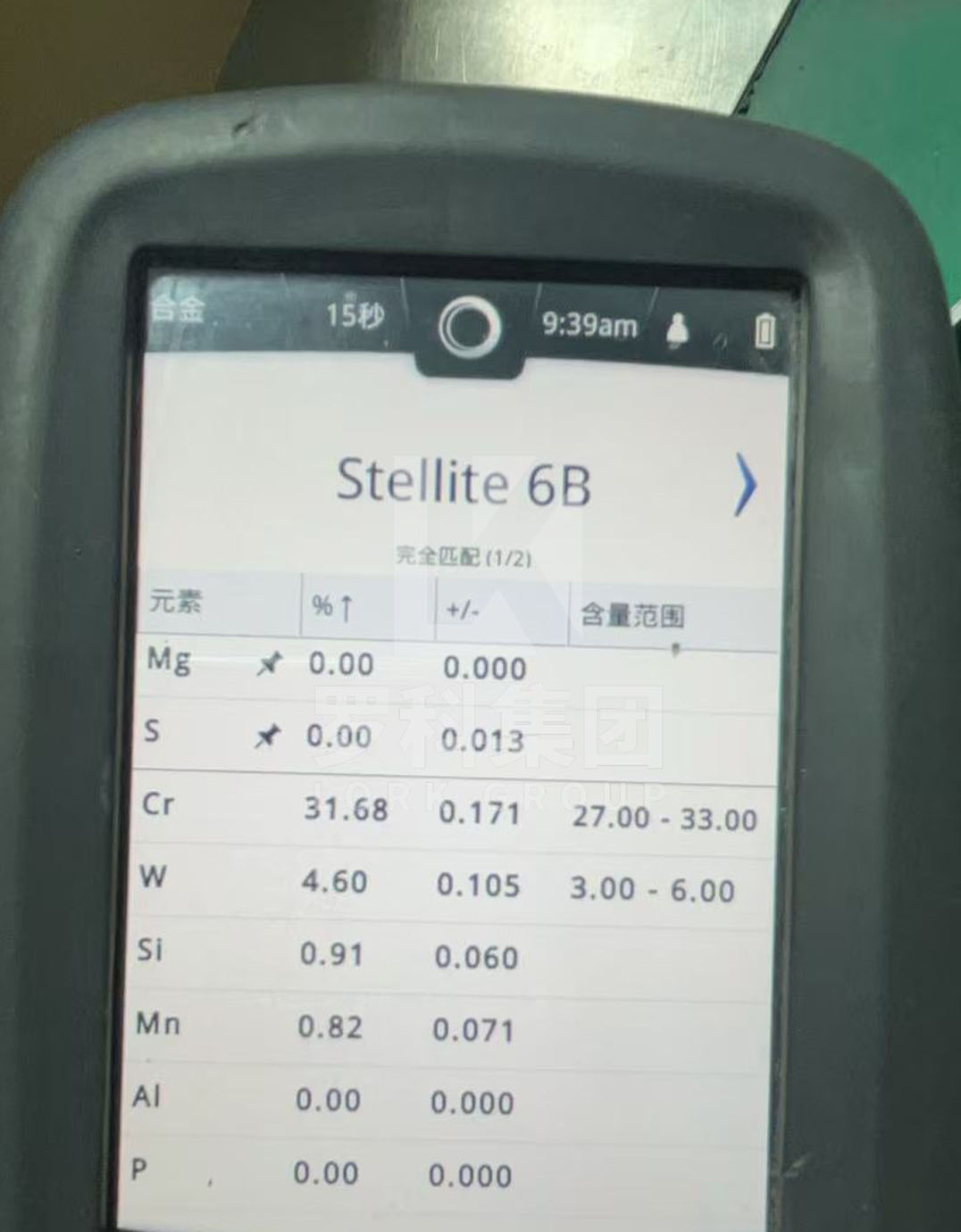

The second round of re-inspection comprises 3 to 6 specific data tests—such as chemical composition analysis, mechanical property testing, hardness testing, and specialized examinations. Adhering to the principle of "grounding operations in standard protocols and relying on the proper use and sterilization of testing instrumentation," multiple rounds of random sampling and data cross-verification are conducted to ensure the "correctness" of the material.
View more order details.
To protect client privacy, some information is provided for reference only.
The perfect combination of materials science and engineering practice
The application of Stellite 6B material in high-temperature steam valve seat sealing relies primarily on its exceptional resistance to galling, erosion, and high temperatures to address the most challenging wear and corrosion issues encountered during valve opening and closing.
For the valve seat bushing application under your responsibility, the choice of this material is highly precise, as it must withstand demands across the following three key areas:
Challenges Faced: Demanding Operating Conditions for High-Temperature Steam Valve Seats
Steam valves—particularly those used to control high-pressure steam—feature sealing surfaces (i.e., valve seats) that are subjected to harsh operating environments characterized by prolonged exposure to high temperatures and thermal shock, high-velocity fluid erosion and cavitation, as well as media-induced corrosion and frictional galling.
The Solution: Performance Advantages of Stellite 6B
It is precisely to address the aforementioned challenges that cobalt-based alloys like Stellite 6B have been selected as the "standard solution" for valve sealing surfaces.
It offers high-temperature wear resistance and excellent cavitation resistance; in addition to good corrosion resistance, it combines high-temperature stability, self-lubricating properties, and resistance to galling.
Key Considerations in Application: Why "Workpieces" Are Crucial
No matter how excellent the material's inherent properties are, they ultimately rely on precision machining to be fully realized. Regarding the bushing component you mentioned, there are several key points: the advantages of "6B," the critical importance of microstructure, and the role of quality inspection as a guarantee.
In summary, the application of Stellite 6B bushings in high-temperature steam valve seats represents a perfect fusion of materials science and engineering practice. Leveraging a comprehensive set of properties—including wear resistance, heat resistance, galling resistance, and corrosion resistance—these components resolve critical industry challenges where valve sealing interfaces fail due to erosion, cavitation, and galling.
