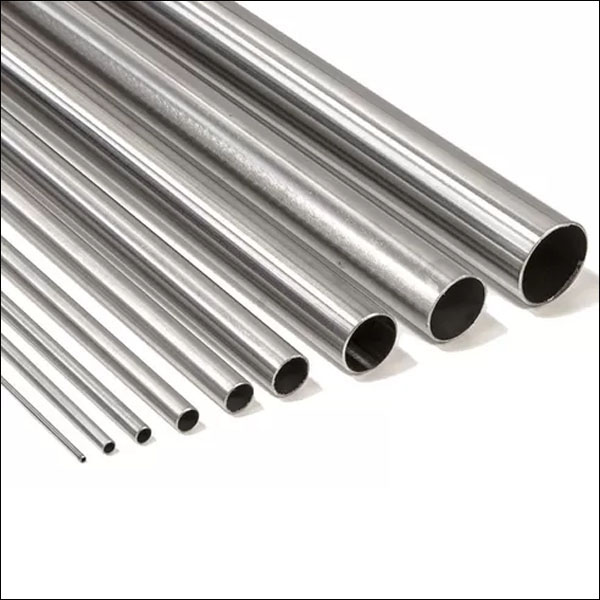

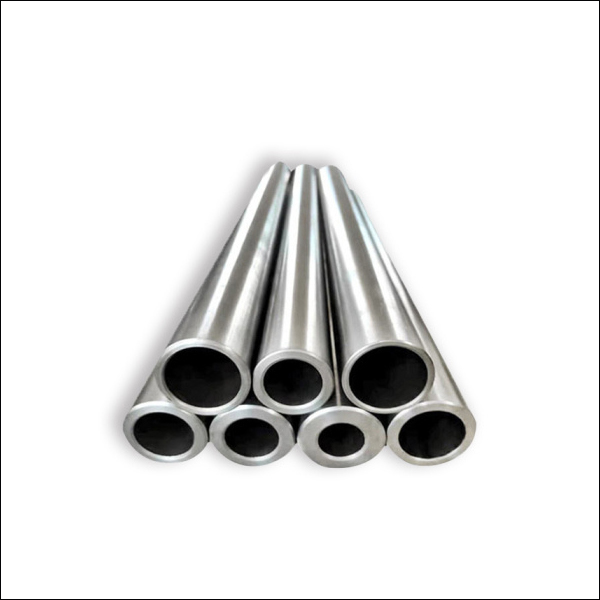

Monel 400 Pipe: Robust Nickel-Copper Alloy for Demanding Applications

Key areas of corrosion resistance include:

• Seawater and Marine Environments: Monel 400 is virtually immune to seawater corrosion, resisting pitting and crevice corrosion even under high-flow conditions, making it a cornerstone of marine engineering.
• Hydrofluoric Acid (HF): It offers unparalleled resistance to all concentrations of hydrofluoric acid, especially under deaerated conditions, even at elevated temperatures. This makes it the material of choice for HF alkylation units.
• Reducing Acids: It excels in handling sulfuric and hydrochloric acids at dilute to moderate concentrations and lower temperatures, far outperforming standard stainless steels.
• Alkalis and Solvents: The alloy demonstrates excellent resistance to alkaline solutions (e.g., caustic soda) and a wide range of organic solvents, chlorinated hydrocarbons, and organic acids.

Superior Mechanical Strength and Toughness

Fabrication: Machinability and Weldability

• Weldability: It can be welded using common techniques like GTAW (TIG), GMAW (MIG), and SMAW. Using a matching filler metal such as ERNiCu-7 is critical. Controlling heat input is essential to minimize the risk of hot cracking; preheating and post-weld heat treatment are generally not required.
• Machinability: Machining Monel 400 is challenging due to rapid work-hardening. Success requires rigid setups, sharp tools with positive rake angles, slow speeds, high feed rates, and copious coolant. Using dedicated machining grades can significantly improve performance.
• Formability: The alloy has good ductility for cold forming (bending, flaring), but powerful equipment is needed. Intermediate annealing may be necessary for complex shapes to relieve stresses induced by work-hardening.

Key Industrial Applications of Monel 400 Pipe

• Marine Engineering: Seawater cooling pipes, pump shafts, propeller shafts, and hull fittings in ships and offshore platforms.
• Oil & Gas (Offshore): Seawater injection lines, ballast systems, chemical injection tubing, and components for sour service handling.
• Chemical Processing: Core piping and vessel components in HF acid alkylation units, and for handling hydrochloric and sulfuric acids.
• Power Generation: Feedwater heaters and condenser tubes, especially in plants using brackish or seawater for cooling.
• Aerospace & Defense: Critical hydraulic and fuel lines, and components in rocket engines that must perform at cryogenic temperatures.
